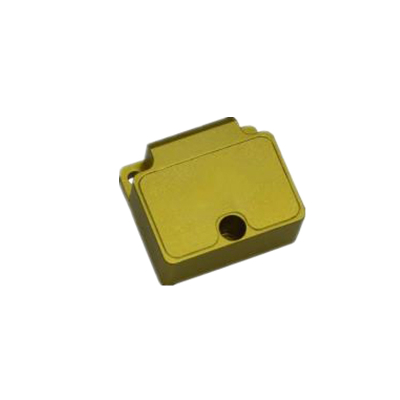

Triaxial MEMS inertial measurement unit

Triaxial MEMS inertial measurement unit

Product Details


NS-IMU-MEMS300 replaces STIM300's product features:

1) Three-axis digital gyroscope:

a) ±400o/s dynamic measurement range;

b) zero bias stability (Allan variance @25 ° C): 0.5o / h;

c) random walk: 0.15o/√h;

d) Offset acceleration sensitivity: ≤ 2o / h / g;

e) Gyro bias error within the full temperature range (-45 °C ~ 60 °C, the root mean square value of the zero error of the fixed temperature point relative to the full temperature): ≤ 30o / h.

2) Three-axis digital accelerometer:

a) ±30g dynamic measurement range;

b) zero bias stability (Allan variance @25 ° C): 0.15 mg;

c) random walk: 0.21m/s√h;

d) noise: 270ug/√Hz;

e) Acceleration zero deviation error in the full temperature range (-45 °C ~ 60 °C, variable temperature ΔT ≤ ±1 °C / min, rms value: ≤ 6mg.

3) High reliability: MTBF>20000h;

4) Guaranteed accuracy in the full temperature range (-45 ° C ~ 60 ° C): built-in high-performance temperature calibration and compensation algorithm;

5) Support drone application: suitable for high vibration environment of drones;

6) Support stable platform application: full parameter measurement, measurement bandwidth >100Hz;

7) The data update rate is ≥1KHz.



Product indicator

parameter

Test Conditions

Minimum value

Typical value

Maximum

unit

Gyro

Dynamic measurement range



±400


o/s

Zero offset stability

Allan variance


0.5


o/h

Zero offset error over the full temperature range

-45 ° C ~ 60 ° C fixed temperature point





Root mean square value of zero error for full temperature


10


°/h

Random walk



0.15


o/√h

Zero bias repeatability

Life cycle and full temperature range


0.01


o/s

Offset acceleration sensitivity



2


o/h /g

Scale factor nonlinearity

FS=400 o/s


100


Ppm

bandwidth



250


Hz

Accelerometer

Dynamic measurement range



±30


g

Zero offset stability

Allan variance


0.15


Mg

Zero offset error over the full temperature range

-45°C~60°C, variable temperature ΔT ≤
 ±1°C/min, rms


6


Mg

Random walk



0.21


m/s/√h

Zero bias repeatability

Life cycle and full temperature range


10


Mg

Scale factor repeatability

Life cycle and full temperature range


1


%

Scale factor nonlinearity

FS=10g


300


Ppm

bandwidth



100


Hz

Electrical characteristics

Voltage

DC

5



V

Power consumption



3


W

Ripple

PP



100

mV

Use environment

Operating temperature


-45


65

°C

storage temperature


-60


85

°C

vibration



10~2000Hz,
 6.06g



Shock



5000g, 0.1ms



reliability

MTBF



20000


h

Continuous working time



120


h


2. Electrical interface

The electrical connector type is J30J-15ZKN-J, and the specific assignment of the contacts is shown in Table 1 below.

Table 1 J30J-15ZKN-J contact distribution

Node number

definition

use

10

Rx+

RS422

2

Rx-

1

Tx-

9

Tx+

8

+5V

Power supply

15

GND

Power ground

other


Manufacturer use, keep

3. Structure size and coordinate definition
