Continuous gyro inclinometer

Continuous gyro inclinometer

Product Details


Introduction:

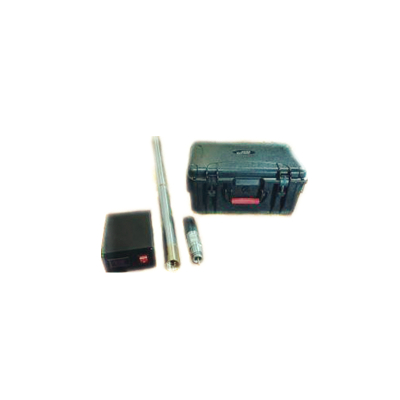

The NS-FIW04 Continuous Gyro Inclinometer uses a three-axis fiber optic gyroscope and a three-axis accelerometer, which consists of an inertial measurement unit.  The trajectory calculation, data display, etc. of the well trajectory features are performed by real-time solutions (inclination, azimuth, tool face angle and No. 1 polar angle).

连续陀螺测斜仪

Product Features:

Automatic north seeking without ground calibration

Continuous inclination

High speed measurement 200m/min

Wired and storage mode

High reliability, high stability, high precision

Easy to operate

Technical Parameters

Index

Well deviation

0°~ 90° ±0.1°

Orientation

0°~360° ±1.0° (1σ, 3°<><60°,><>

Tool face angle

0°~360° ±0.5°

North seek time

60s

Operating mode

Continuous, point test

Measuring speed

200m/min (656 ft/min)

Storage points

3000 shots in multishot

Operating temperature

0 ̊C ~ +75 ̊C (32°F ~ +167 ̊F)

Withstand voltage

50MPa (7250psi)

diameter

38mm (1.49")

Battery Life

Up to 20 hours

Instrument length

970mm (38.2")

weight

10Kg

Ground host parameter

Input voltage

90V AC -240V AC, 50-60 Hz

The output voltage

72V DC 200mA

Well depth system

High accuracy continuous depth measurement

Cable parameter

Max. 300 Ω

size

165mm*220mm*85mm

weight

5 kg

连续陀螺测斜仪连续陀螺测斜仪

Our company also provides: fiber optic gyro north finder, MEMS north finder and heading attitude measurement system AHRS and other products
