MEMS high dynamic gyroscope

MEMS high dynamic gyroscope

Product Details

Features:

1. Low noise, measurement range and bandwidth;

2. Measurement range and bandwidth are optional;

3. Calibration temperature range, noise processing, optional output signal (unipolar/bipolar differential);

4. Current / voltage, electromagnetic interference safety function...

MEMS高动态陀螺仪

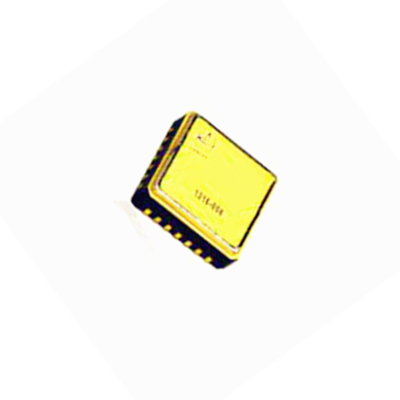

NS-MG-8000 MEMS High Dynamic Gyroscope

Performance specification

Unit

NS-MG-8000 MEMS High Dynamic Gyroscope

range

Deg/s

8000

Bandwidth (BW@3DB custom)

Hz

200

Output accuracy (digital SPI)

Bits

twenty four

Data output rate (can be customized)

Hz

6K

Delay (customizable)

Ms

1

Zero offset stability

Deg/hr(1σ)

<>

Zero offset stability (10 s standard deviation @moom time)

Deg/hr(1σ)

<>

Zero offset stability (1s standard deviation @moom time)

Deg/hr(1σ)

<>

Zero offset drift

Deg/Hr/°C

5

Zero offset drift (partial compensation)

Deg/Hr/°C

1

Zero offset repeatability

Deg/hr(1σ)

5

Scale factor repeatability

Ppm(1σ)

50ppm

Scale factor temperature drift

Ppm (1σ)

100ppm

Scale factor nonlinearity

Ppm

100ppm

Random drift

°/ √h

<>

Resolution

°/hr

5

Bandwidth noise (peak to peak)

Deg/s

±1

G-value sensitivity

°/hr/g

<>

Vibration correction error (12gms, 20-2000)

°/hr/g(rms)

<>

Boot time (effective data)

s

1

Environmental feasibility

Electric shock (charging)

200g (1ms, 1/2 sine)

Impact resistant (not charged)

1.8wg 3ms

Vibration (charged)

12g rms (20Hz to 2kHz)

Operating temperature

One 45 ° C - +85 ° C

storage temperature

One 55 ° C - +105 ° C

Specifications

size

11x11x2.5mm

Kit

LCC

interface

SPI

Our company also provides: fiber optic gyro north finder, land positioning and orientation system and mapping positioning and orientation system, etc.
