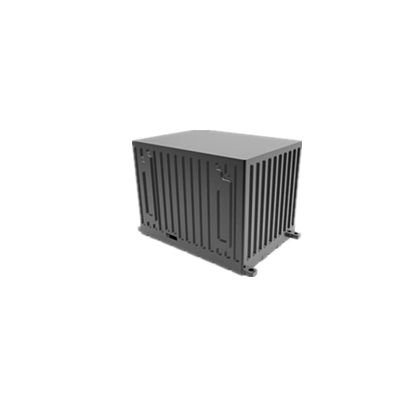

Fiber Optic Gyro Attitude Heading Measurement System

Fiber Optic Gyro Attitude Heading Measurement System

Product Details



Features:

The fiber-optic strap-down heading attitude measurement system AHRS is composed of a closed-loop fiber optic gyroscope (the ER-AHRS-10M uses an ultra-small closed-loop fiber optic gyroscope) and a quartz flexible accelerometer as the core inertial component, which is aligned or preliminarily derived from the external input heading. The aligned attitude system is implemented by satellite signal combination correction in alignment after flight.  The product can work in pure inertial attitude state or satellite signal combined attitude state, and simultaneously output three-axis high-precision angular rate and line acceleration signals (where ER-AHRS-10 is not combined).  Flight status parameters such as aircraft attitude, heading, position, speed, acceleration, and angular velocity can be provided for cockpit display, aircraft control, radar antenna platform, and other systems.  The product has the characteristics of small size, light weight and high reliability.

Application areas: camera equipment, seekers, transport aircraft, drones, helicopters, small and medium-sized general aircraft.


光纤陀螺航姿航向测量系统


Technical indicators

project

ER-AHRS-10

ER-AHRS-10K

ER-AHRS-10M

Dimensions

370mm*124mm*195mm

228mm*125mm*80mm

208mm*105mm*70mm

weight

≤8kg

≤3kg

≤2.2kg

Power supply

24V ± 4VDC (18V-36V) power consumption <>

28VDC (18V-36V) power consumption <>

28VDC (18V-36V) power consumption <>

Output Interface

RS-422/RS-232

Preparation time

≤5min

Inertial /GNSS/BDII combined attitude accuracy heading

course


0.05° ( RMS )

0.05° ( RMS )

attitude


0.05° ( RMS )

0.05° ( RMS )

Pure inertial attitude accuracy ( 60min )

course

0.2° ( RMS )

0.3° ( RMS )

0.5° ( RMS )

attitude

0.1° ( RMS )

0.1° ( RMS )

0.1° ( RMS )

Measuring range

Angular velocity

±400°/s

Acceleration

±20g

Conditions of Use

Operating temperature

-40°C-+70°C

Shock

Half sine wave / 40g , 11ms

vibration

0.02g 2 /Hz

reliability

10000h
