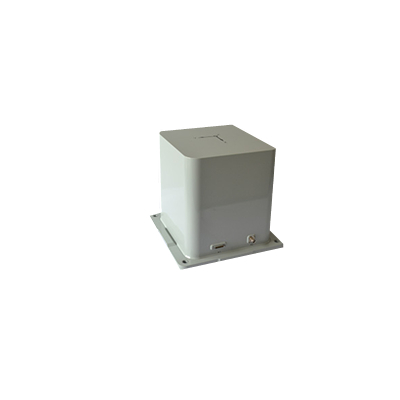

High precision dynamic north finder

High precision dynamic north finder

Product Details


1. Product Features:

The dynamic north finder is based on high-precision fiber optic gyro north finder and quartz accelerometer. It is mainly composed of inertial measurement unit, data acquisition and processing unit, precision indexing mechanism and control display unit, and according to the characteristics of use, Components such as GPS/GNSS/BD receivers, odometer sensors, altimeters and star sensors can be added to provide both the azimuth of the carrier and true north, as well as the motion attitude, speed and position information of the carrier.  The product can be used for missile launch, weapon aiming, and dynamic and static initial alignment and direction control of radar, antenna, vehicle and other objects.

高精度动态寻北仪

2, product parameters:

parameter

NS-NF1A

NS-NF1B

NS-NF1C

Dimensions mm

248 × 248 × 180mm (can be customized according to user needs)

Weight Kg

20Kg

18Kg

15Kg

Power supply

AC AC220V, 50Hz/AC AC110V, 60Hz/DC DC18V~36V

Power consumption

Not more than 50W

Start Time

3min

Working latitude

-70°~+70°

North seeking accuracy

0.02°secψ

0.06°secψ

0.1°secψ

North seek time

5min

5min

3min

Rolling pitch accuracy

0.02°

0.06°

0.1°

Heading angle measurement range

0°~360°

Roll angle and pitch angle measurement range

-65°~+65°

Position accuracy

0.8nmi/h

1.2nmi/h

1.5nmi/h

Display method

The LCD screen displays the attitude angle and position information.

output method

The universal RS422 serial interface can also be customized according to user needs.

Operating temperature

-40°C~+60°C

Vibration environment

20Hz~2000Hz, 6.06g

Impact environment

8ms~11ms, 30g

** Note: The function can be selected according to user requirements.
